.25" (1/4") x 60" Pro-Eco Slitter Line

Hive Research & Technology Ltd.
44 Bowshelm Court
Mississauga, Ontario, Canada, L5N 1K1

+1 905 819-8855
fax +1 905 858-2881
info@hiveresearchandtechnology.com

Your solution, for custom engineered solutions and troubleshooting, for the steel processing industry.

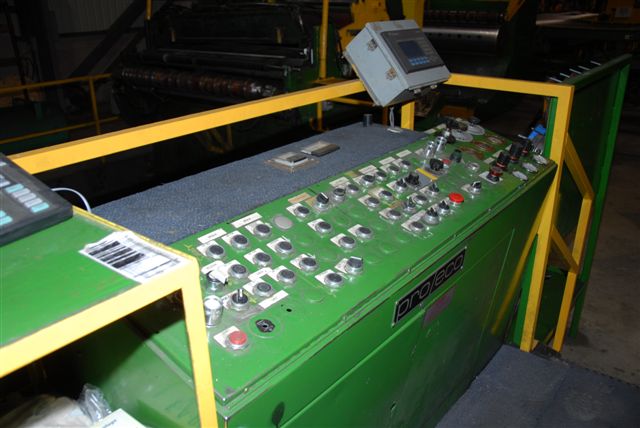

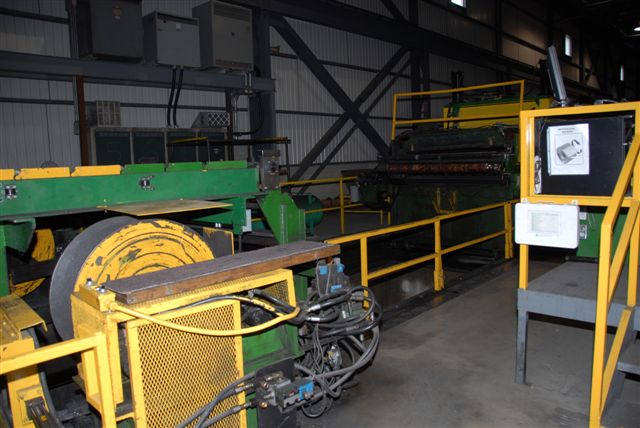

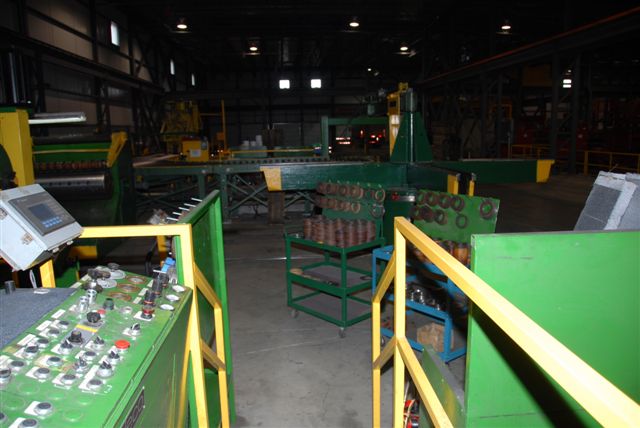

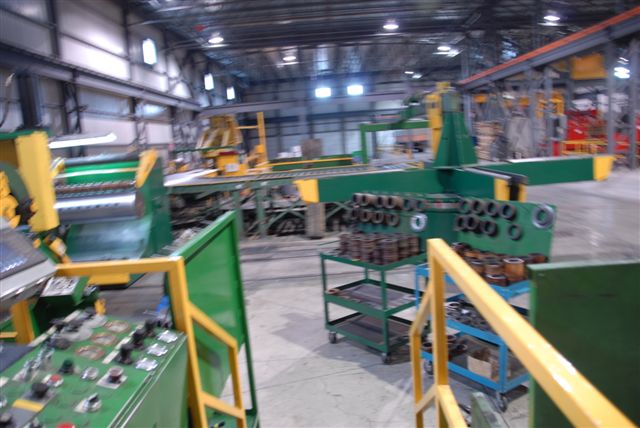

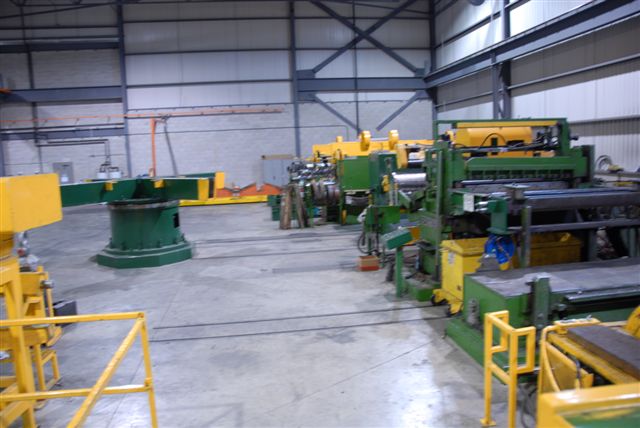

0.250" (6.35mm) x 60" (1524mm) ProEco / Nova Single Loop Slitter Maximum entry and exit coil O.D.: 72" (1828.8 mm). Entry coil I.D.: 20" (508 mm) to 30" (762 mm). Exit coil I.D.: 20" (508 mm) & 24" (609.6 mm). Capacity 0.019" (0.4826 mm) to 0.250" (6.35 mm) thickness. Line speed: maximum 750 FPM. Modes of operation a.) single loop drive slitting, b.) tight line pull through. Controls updated in 2006. Powered and operational.
ProEco 30-ton capacity coil entry car, model 60-51-72, serial 157-2-77

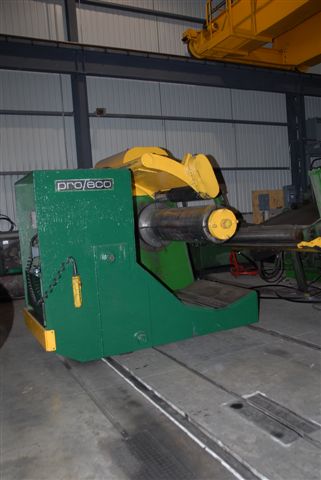

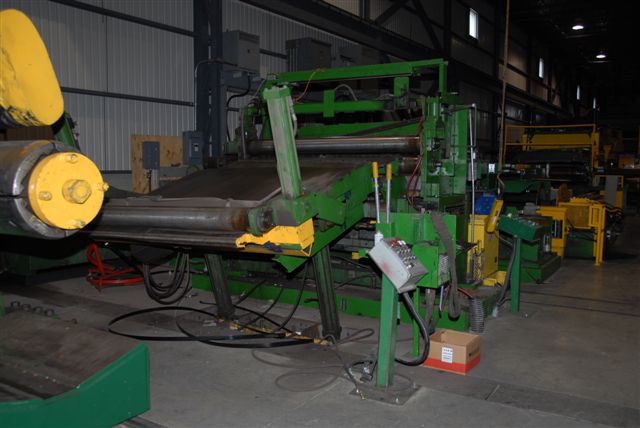

ProEco 30-ton capacity uncoiler, model 60-62-72, serial 157-3-77

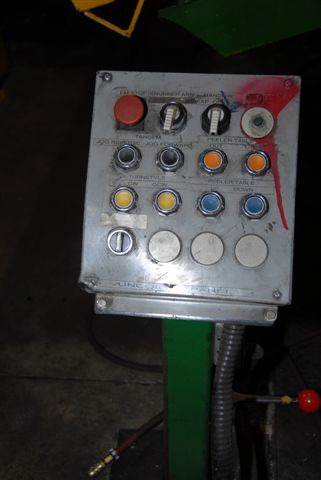

ProEco peeler table, model 60, serial 157-4-77

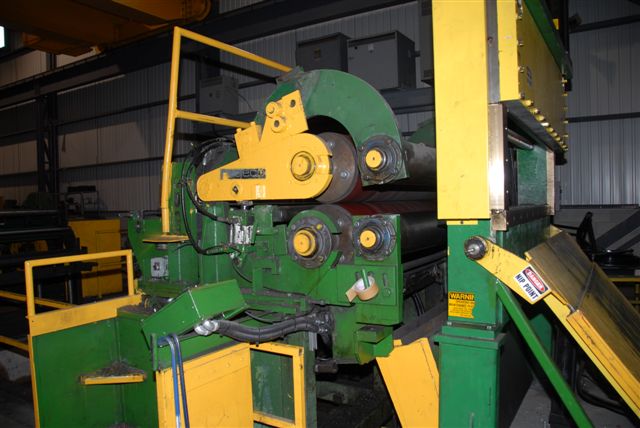

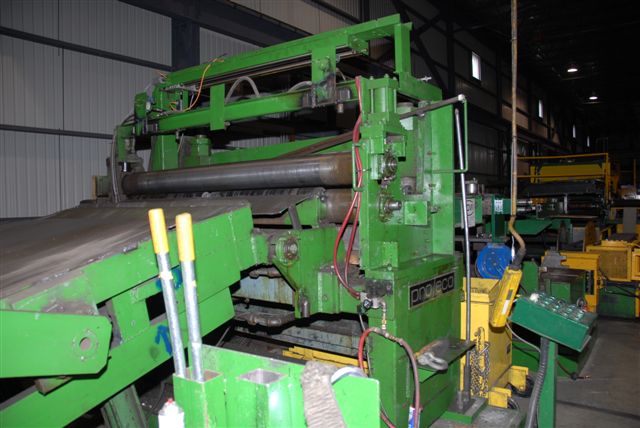

ProEco entry shear c/w powered pinch rolls, model 250-60, serial 157-5-77
side guides

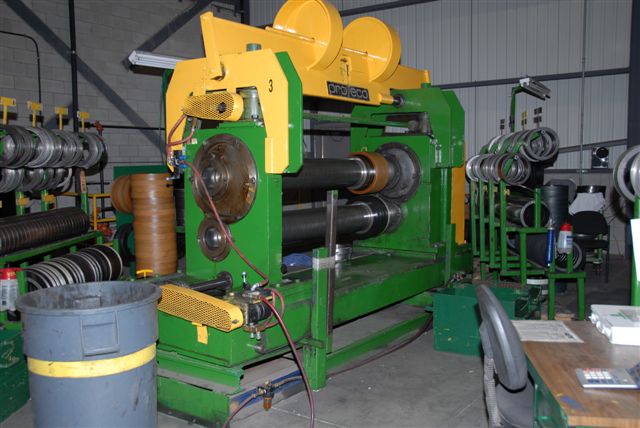

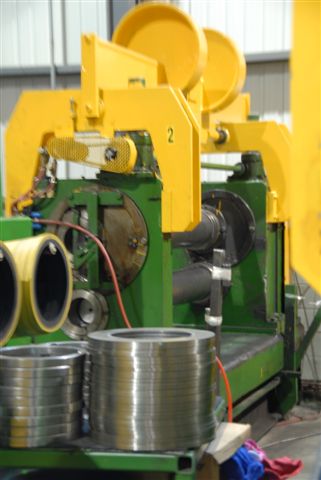

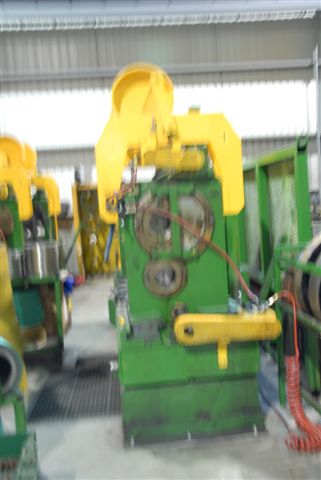

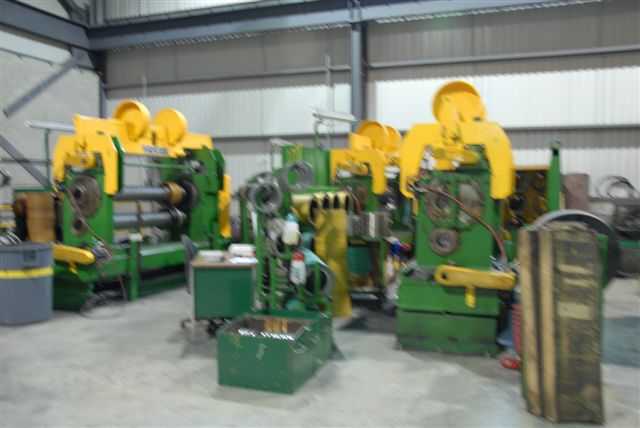

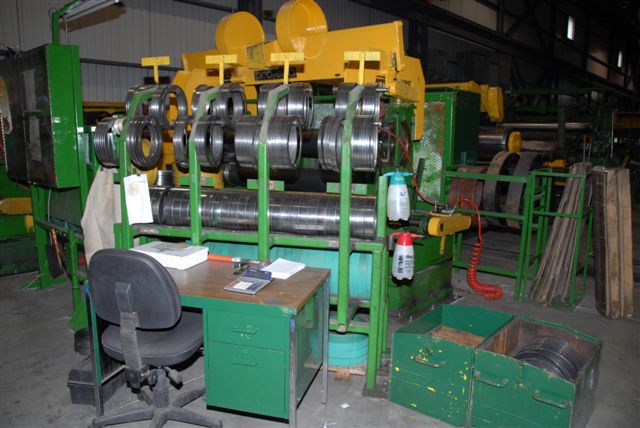

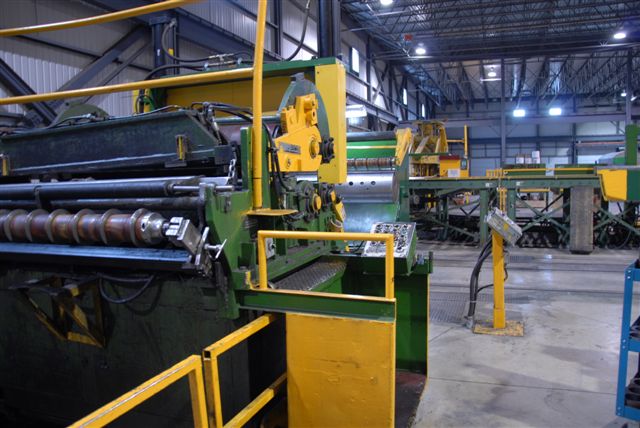

three (3) ProEco slitter heads, model 1613-9-66, serial 157-6-77 c/w 50 Hp drive, 9"" arbor diameter, shimless tooling

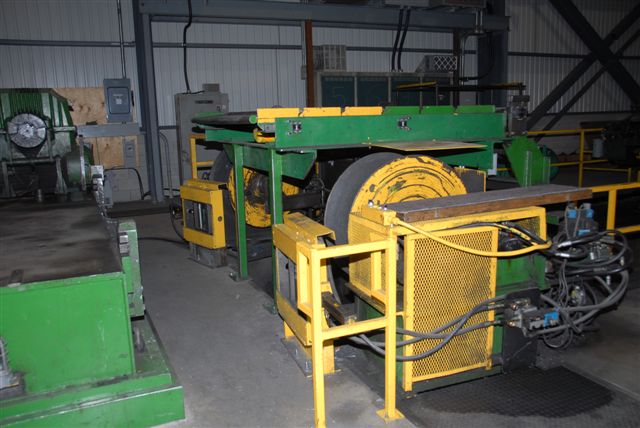

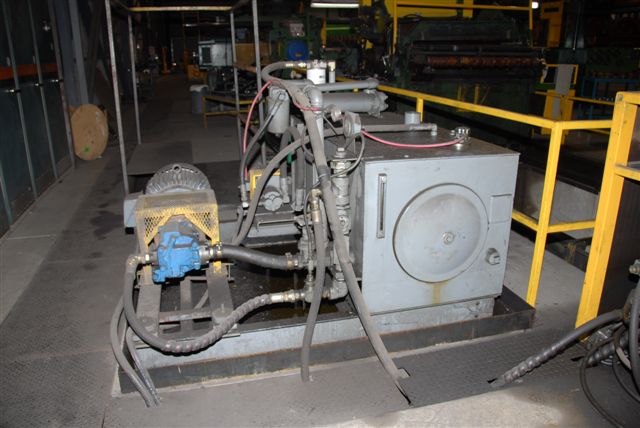

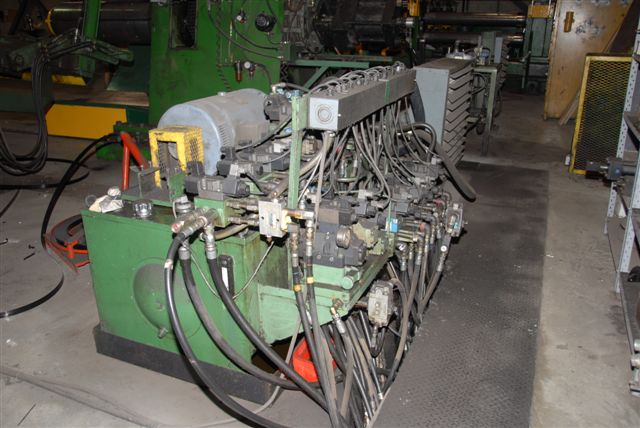

two (2) ProEco scrap winders, model HD, serial 157-9-77 with independent hydraulic unit

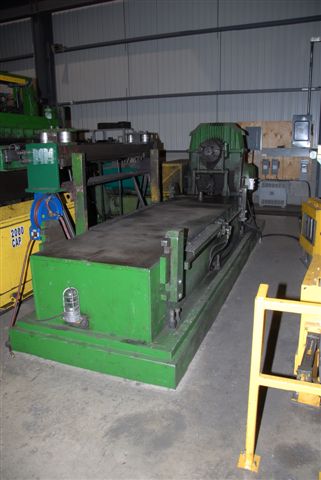

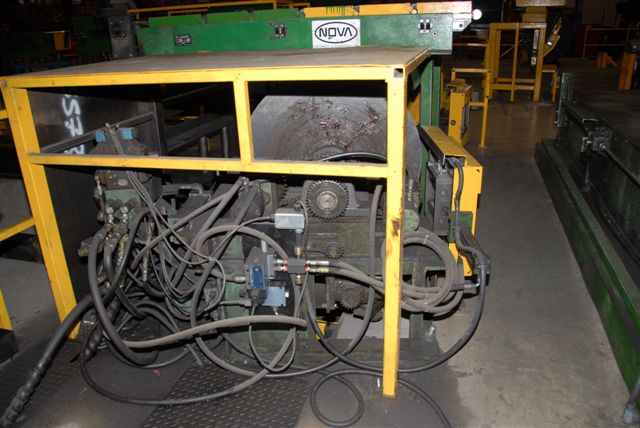

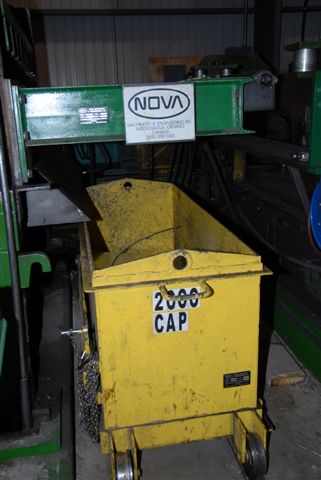

pit carry over table; Nova exit shear, model 3721 serial C-shear

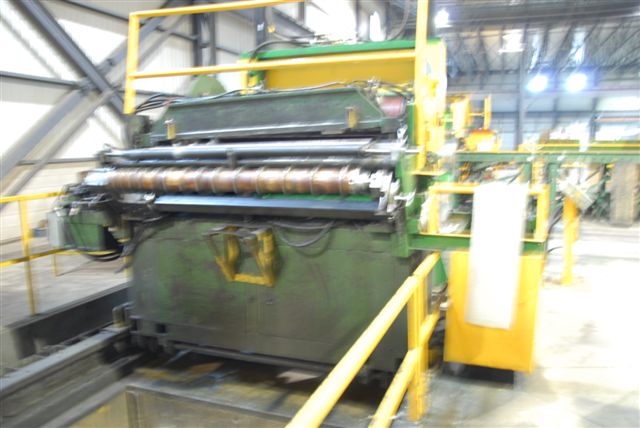

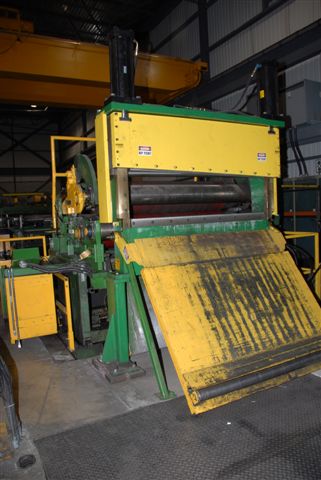

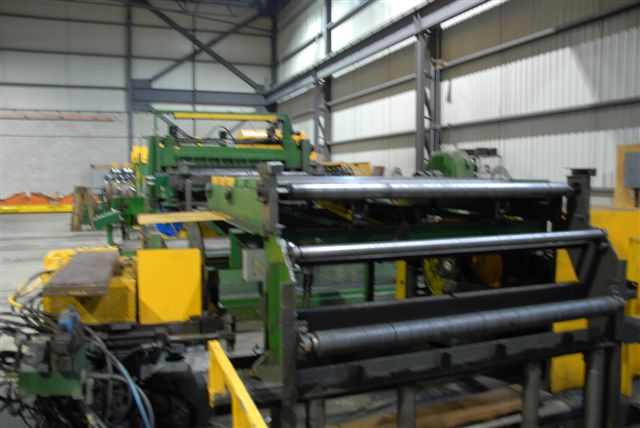

ProEco tension stand c/w rolls and drag pads, model 60 URAFL, serial 157-10-77
feed table to recoiler

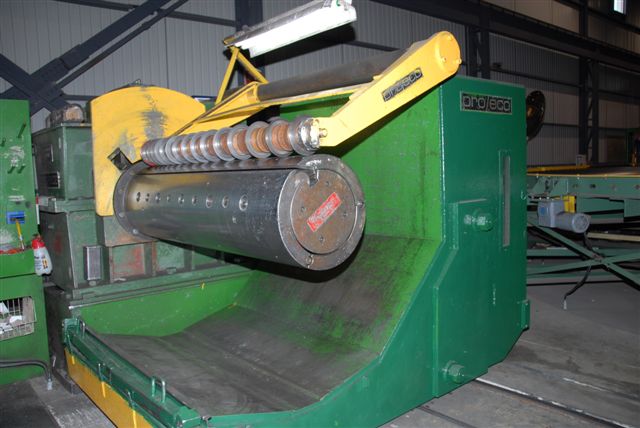

ProEco recoiler, model 60-60, serial 157-11-77
overarm separator with tooling
ProEco exit coil car, model 60-60, serial 157-13-77

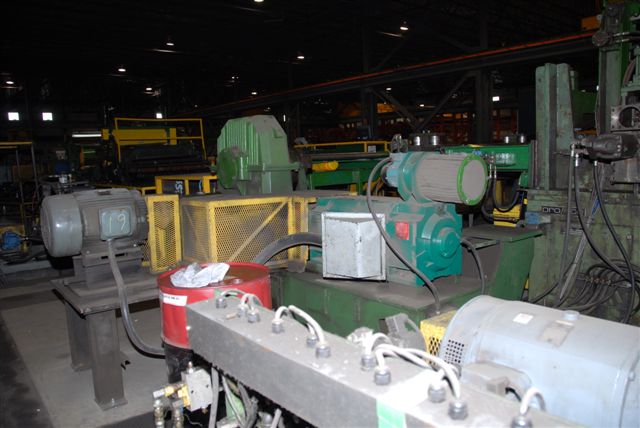

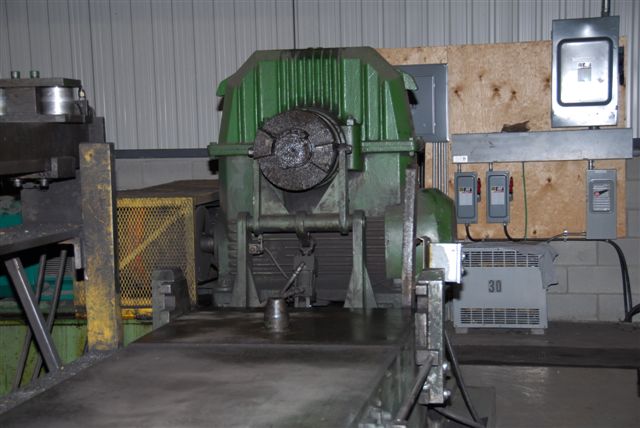

200 Hp drive and 2 speed gear reducer

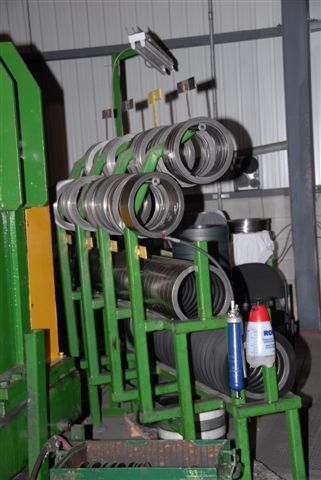

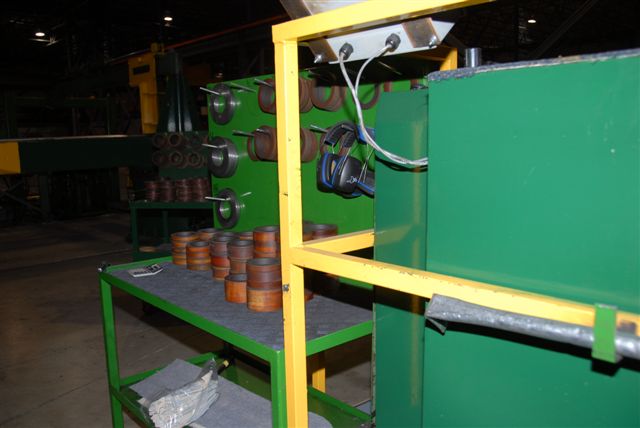

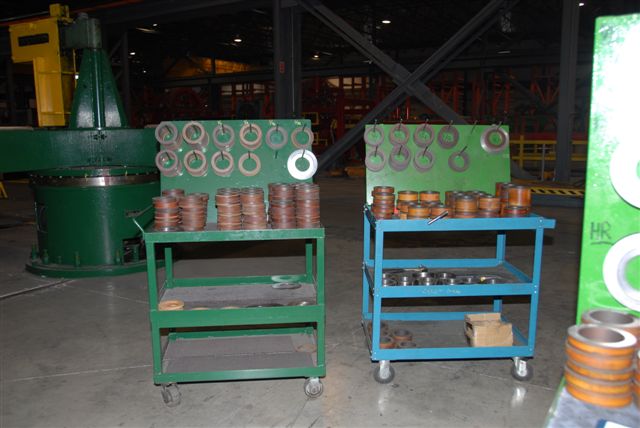

Includes tooling, knives, and rubbers
